Bypass Cone Pipe Stopper

About Bypass Cone Pipe Stopper

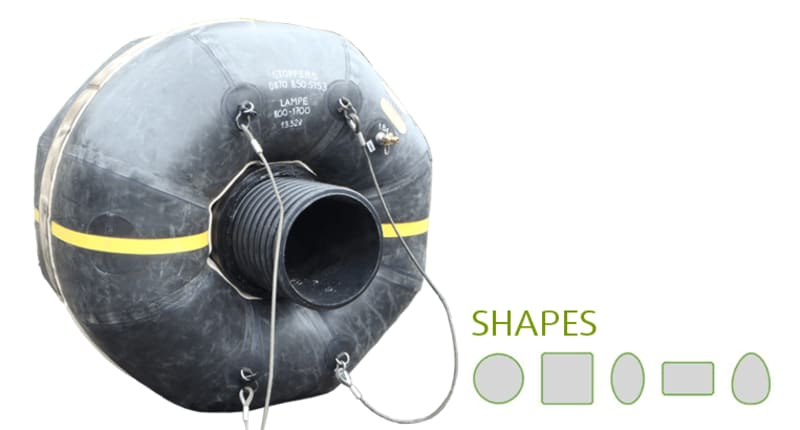

The Bypass Cone Pipe Stopper is ideal for when stopping the flow is not possible in a pipe, drain or sewer. This durable bypass stopper allows you to drain off the water through a PVC type pipe used in the middle of the stopper.

Benefits

  • Lightweight, easy to fold and install
  • Pipe diameter ranges from 150mm - 2200mm
  • Internal bypass up to 600mm
  • Operating pressure 1 bar
  • Durable

Specification

Blank Stopper

15/40

25/60

40/100

60/140

80/170

120/220

Pipe Diameter (mm)

150-400

250-600

400-1000

600-1400

800-1700

1200-2200

Operating Pressure

1.0 Bar

1.0 Bar

1.0 Bar

1.0 Bar

1.0 Bar

1.0 Bar

Max. Back Pressure

0.5 Bar

0.5 Bar

0.5 Bar

0.5 Bar

0.5 Bar

0.5 Bar

Weight (kg)

3.7

10.5

21

36

36

102

Bypass

1"

2"

2.5"

2.5"

600mm/24”

2.5"

User Guide

Note: Stoppers must be fully inserted into the pipe prior to inflation and must not be used in pipework within open excavations or unrestrained pipework. All pipes must be anchored before pressure testing.

Technical Library

Cone Pipe Stopper User Guide

Cone Pipe Stopper User Guide

User Guidance notes for the securing, installation and safe removal of the Cone Pipe Stopper

319 Downloads
