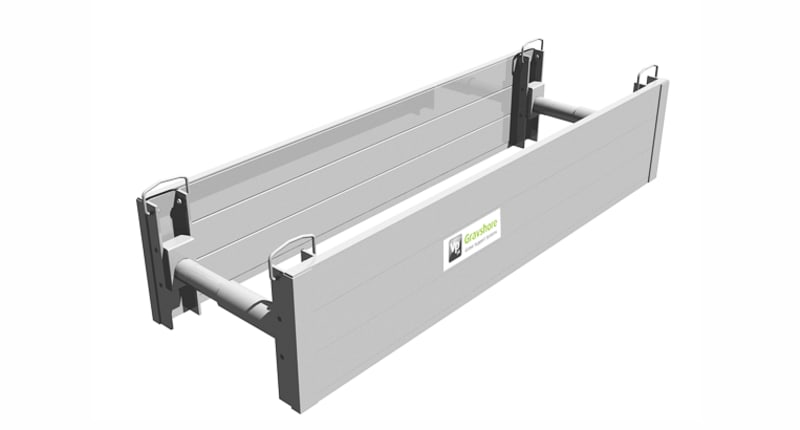

Rectangular Units

Unit Length

Internal Clearance

Unit Depth

Weight of
each Panel (kg)

Unit Weight - When using two
model 36 cylinders (kg)

1525mm (5'0")

1325mm (4'4")

285mm (1’0”)

8.7

29

435mm (1’6”)

12.5

36.6

585mm (2’0”)

16.3

44.2

2135mm (7'0'')

1935mm (6’5”)

285mm (1’0”)

11.5

34.6

435mm (1’6”)

16.3

44.2

585mm (2’0”)

21.3

54.2

2288mm (7'6'')

2088mm (6’10”)

285mm (1’0”)

12.3

36.2

435mm (1’6”)

17.3

46.2

585mm (2’0”)

22.5

56.6

2440mm (8’0”)

2240mm (7’5”)

285mm (1’0”)

13

37.6

435mm (1’6”)

18.3

48.2

585mm (2’0”)

23.7

59
