Mini, Standard & Mega Multi Trench Box
Trench boxes are generally the first choice for the rapid shoring of trench runs due to the speed and simplicity of installation. They are generally suitable for use in trenches up to 5m wide x 6m deep in reasonable ground conditions. They are not recommended in unmanaged, waterlogged ground. They are used in multiples to continuously support a length of trench.
- Medium duty trench support
- The Mini Box can be used in trenches up to 4.0m deep in conjunction with up to two top extension boxes, subject to the maximum panel pressure not being exceeded
- The Standard Box can be used in trenches up to 5.2m deep in conjunction with up to two top extension units, subject to the maximum panel pressure not being exceeded
- Trench width possible from 0.7m to 4.9

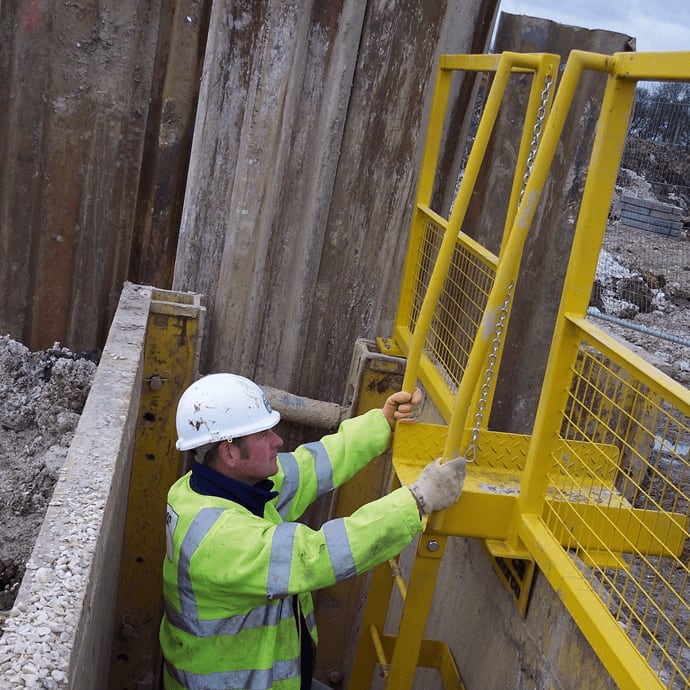

- Hand rail and laddersafe panels available
- Four way handling point to aid safe assembly
Specification
| Specification |
Trench Box Type |
| |
Mini Trench Box |
Standard Trench Box |
Premier Trench Box |
Multi Mega Trench Box |
| Typical Box Weight (kg)* |
1340 (base) 762 (top) |
2248 (base) 1370 (top) |
|
|
| Plate Length (m) |
3.0 |
3.5 |
3.5 |
5.0 |
| Plate Height (m) |
2.0 (base) 1.0 (top) |
2.6 (base) 1.35 (top |
3.9 (base) 1.35 (top) |
2.7 (base) 1.35 (top) |
| Plate Thickness (mm) |
60 |
107 |
105 |
127 |
| Weight of Plate (kg) |
576 (base) 326 (top) |
1030 (base) 630 (top) |
1600 (base) 630 (top) |
1545 (base) 920 (top) |
| Maximum Trench Depth (m)** |
4.0 |
5.3 |
6.6 |
5.4 |
| Internal width (mm) |
510 - 4310 |
510 - 4310 |
560 - 4682 |
1054 - 4654 |
| External width (mm) |
650 - 4450 |
730 - 4530 |
760 – 4882 |
1307 - 4907 |
| Clearance below strut (mm) |
1190 |
1440 |
2455 |
1400 |
| Clearance between struts (mm) |
2500 |
3000 |
2930 |
4525 |
