Steerable Panels

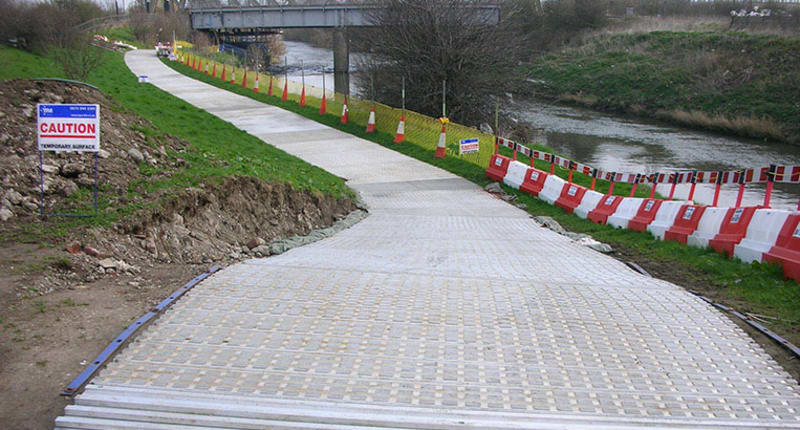

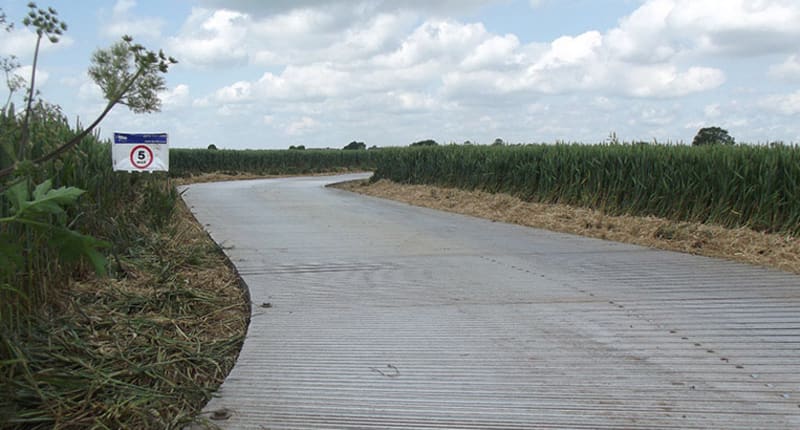

Steerable panels enable the portable roadway to manoeuvre around obstacles such as buildings or trees without the need to overlap the panels. Designed to integrate with the Heavy Duty and Camber Panels a seamless access solution can be created for all site conditions.

Design & Features

• 3m Wide load bearing temporary access roadway & walkway for all ground conditions

• Integrates seamlessly with TPAs Heavy Duty and Camber Panels

• Provides an angle of diversion from 0 to 30 degrees

Application & Capability

• Delivered and installed utilising our fleet of specialist vehicles and fully accredited installation teams

• Suitable for a vast spectrum of ground conditions and access requirements

• Design is suitable for a diverse weight range

Specification

Steerable panels are used on a variety of installations including Wimbledon, Nottingham Goose Fair, and CIWM to create a professional and neat installation.

Dimensions

• Product Dimensions (Width x Length): 3000mm x 1400mm to 1000mm
• Angle of diversion from 0 to 30 degrees

Box Section Properties

• Width of section = 115mm
• Depth of section = 52mm

Weight

• 260kg per panel

Material

• 6063 T6 Grade Aluminium
• Limiting stress for bending and overall yielding =160 n/mm2
• Limiting stress for local capacity of the section in tension or compression = 175 n/mm2
• Limiting stress in shear = 95 n/mm2

Load Bearing Capacity

• 250 tonne point load
• 1000 tonne gross train weight over ground with a 2% CBR
