Super Mega Brace

NEW

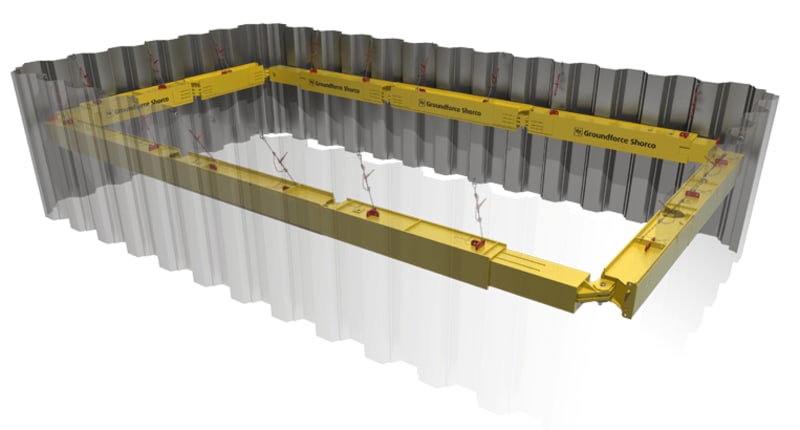

The Super Mega Brace is a high load capacity modular hydraulic bracing system designed to support square, rectangular or multi-sided excavations ranging from 4.7m to 24.2m in plan. Each leg comprises a length adjustable hydraulic unit, a series of modular fixed length extension pieces and a telescopic pinned rough adjuster unit. Connections between modular sections are made on site via a spliced connection with a single pin. The fixed length extensions can be connected and when combined with cross struts, form a continuous heavy duty waling beam.

Benefits

  • Excellent load capacity at long clear spans in excess of 21m
  • Modular componants permit flexible configurations
  • Double acting hydraulics for 1.5m of fine adjustment
  • Telescoping section for 2.0m of course adjustment
  • Composite beam construction and high strength joint arrangement

Typlical Applications

  • Large Tanks - Interceptor, storage, fuel tank farms.
  • Cofferdams, basements, bridge abutments.
  • Reinforced Concrete Structures - Pumping Stations, Retaining walls etc.
  • Large basement constructions

Specification

Modular Component

Overall Length (mm)

Weight (Kg)

Super Mega Brace Hydraulic Unit 3735 - 5235 3810
Super Mega Brace Rough Adjuster 4250 - 6250 3990
Super Mega Brace Extn. 3.0m 3000 1650
Super Mega Brace Extn. 6.0m 6000 2800
Super Mega Brace Extn. 9.0m 9000 3960
Super Mega Brace Extn. 12.0m 12000 5200

Brace Compatability Chart



MH

Brace

900

Series

Maxi

Brace

Mega

Brace

1000

Series

1500

Series

Super

Mega

Brace

MH Brace x x x
900 Series x x
Maxi Brace x   x x     x
Mega Brace     x x   x x
1000 Series         x x
1500 Series       x x x x

Super Mega
Brace

    x x   x

x

*Please note

1. Allowances for deflection should be taken into account and deducted from the internal working range. Contact technical services department for further information.
2. The ranges shown above may differ when combined with other equipment.
