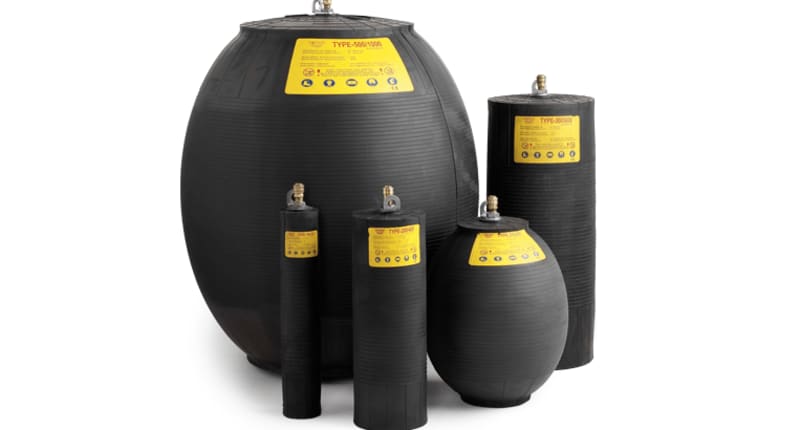

Trelleborg Inflatable Cylindrical Stoppers
Ideal for air testing, water testing and flow stopping. Maximum diameter 440mm.
Benefits
- Available as blank or bypass stoppers
- Ideal for air testing, water testing, flow stopping
- Capable of withstanding up to 1 bar (10 metres head of water) back pressure
- Robust and reasonably lightweight
- Diameters ranging from 40mm-2000mm
- Can cope with some ovality
Specification
| OLS (Blank) |
Range (mm) |
Working Pressure (Bar) |
Diameter (mm) |
Length (mm) |
Weight (kg) |
| 40/70 |
40-70 |
1.5 |
35 |
160 |
0.35 |
| 65/100 |
65-100 |
1.5 |
60 |
100 |
0.2 |
| 70/150 |
70-150 |
1.5 |
65 |
320 |
0.55 |
| 100/200 SHORT |
100-200 |
3 |
95 |
250 |
1.1 |
| 100/200 |
100-200 |
3 |
95 |
500 |
2 |
| 150/300 |
150-300 |
3 |
135 |
565 |
3 |
| 200/400 |
200-400 |
3 |
180 |
500 |
4 |
| 300/600 |
300-600 |
3 |
290 |
700 |
9 |
| 400/800 |
400-800 |
3 |
355 |
1290 |
17 |
| 500/1000 |
500-1000 |
3 |
440 |
1475 |
20 |
| 500/1200 |
500-1200 |
3 |
440 |
1875 |
29 |
User Guide
