Double Slide Rail

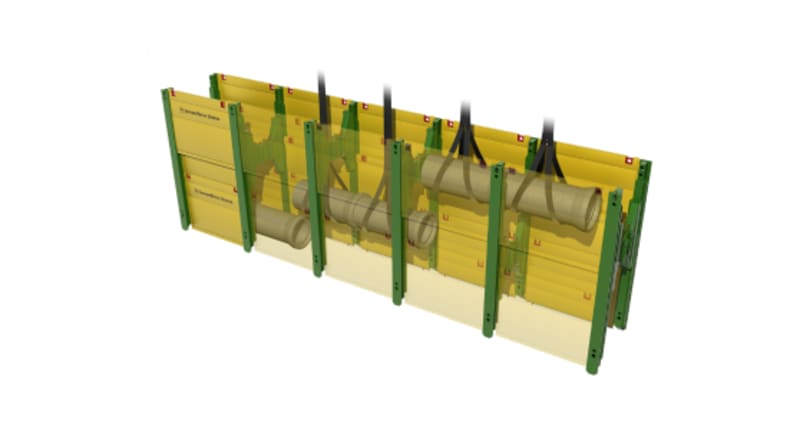

The Rolling Strut Double Slide Rail is a highly versatile shoring system used for deep trenches with high pipe clearances.
The system consists of Panels, Slide Rails and H-shaped Rolling Struts. Where the shoring panels are inserted into two guides.
They are primarily used for deep trenches of up to 7.60 m or long run trenches. Due to the
design of the system, there are greater under strut clearances when compared to conventional trench boxes. When using a soil support even larger strut clearance heights to be achieved.
Trenches can also be totally enclosed by using Corner Slide Rails and Trench Shoring Panels
Specification
| Type |
Single
|
Double
|
| Maximum Shoring Depth |
Up to 3.80 m |
7.60 m |
| Working Width |
Standard Roller |
Mega Roller |
| 2.65 m - 7.65 m |
2.65 m - 7.65 m |
| Trench Width |
Standard Roller |
Mega Roller |
| 1.24 m - 6.24 m |
1.84 m - 6.84 m |
| Pipe Clearance Height (hc) |
2.4 m
|
up to 5.10 m
|
| Compatible with Excavators |
18 - 30 t
|
24 - 30 t +
|
