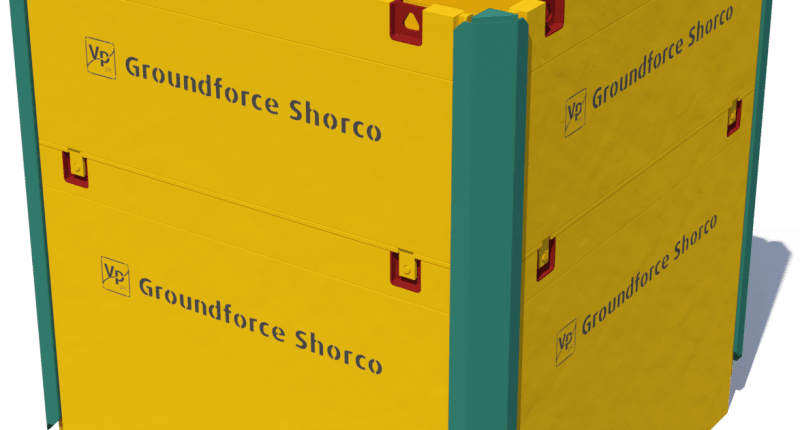

Single Slide Rail

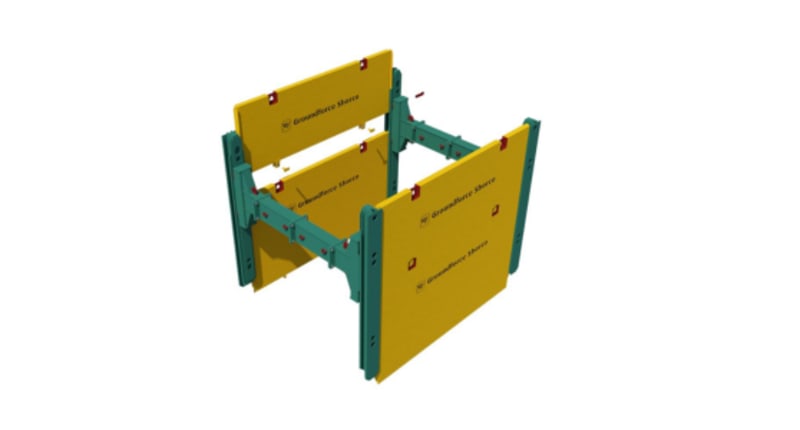

The Single Slide Rail is a modular trench shoring system featuring a single guide rail for installing trench shoring plates. It is designed for efficiency and safety, keeping the trench width constant throughout excavation while reducing installation and removal forces.
The system's design enables greater under-strut clearances than conventional trench boxes, and additional strut clearance is possible when using a steel beam or a concrete slab.
The shoring panels are only inserted into one guide to allow a maximum box depth of 3.8m and a width of 6.24m. For longer pipe runs, the Rolling Struts can be arranged so their heights are offset, enabling pipes to be ‘pitched in’.
- Single guide frame
- Rolling strut height flexibility
- Greater under strut clearance
- Safe, fast installation
Specification
|
Type
|
Single
|
Double
|
| Maximum Shoring Depth |
Up to 3.80 m |
7.60 m |
| Working Width |
Standard Roller |
Mega Roller |
| 2.65 m - 7.65 m |
2.65 m - 7.65 m |
| Trench Width |
Standard Roller |
Mega Roller |
| 1.24 m - 6.24 m |
1.84 m - 6.84 m |
| Pipe Clearance Height (hc) |
2.4 m |
up to 5.10 m |
| Compatible with Excavators |
18 - 30 t |
24 - 30 t + |
