Tapered Units

About Tapered Units

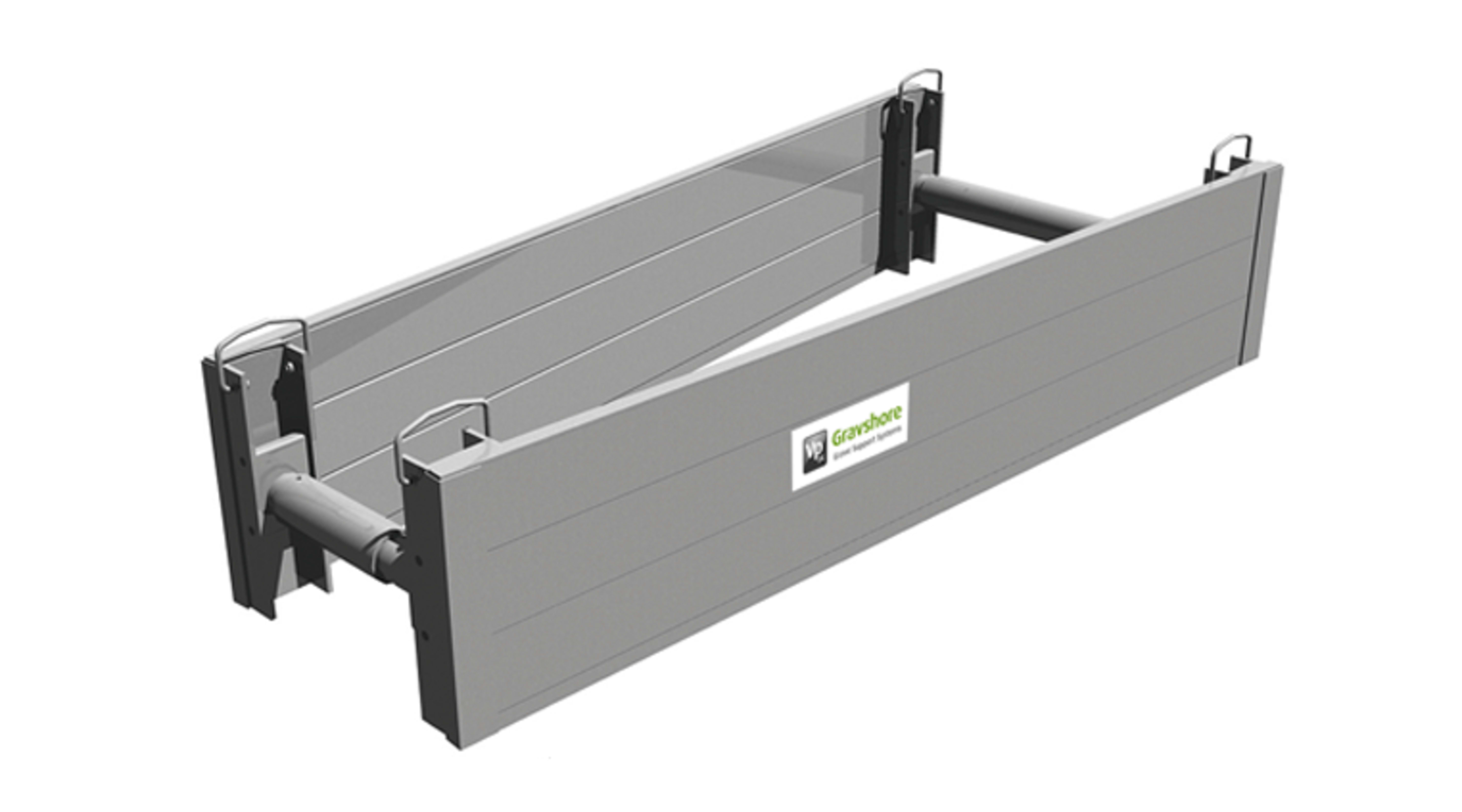

The standard tapered unit uses one model 22 cylinder, and one model 36 cylinder as shown on the illustration.

Unit Length

Internal Clearance

Unit Depth

Weight of
each panel (kg)

Unit Weight
- When using
model 36 cylinder
& one model 22 cyl. (kg)

2135mm (7'0")

1935mm (6'5")

285mm (1'0)

11.5

32.4

435mm (1'6")

16.3

42.2

585mm (2'0")

21.3

51.8

2288mm (7'6")

2088mm (6'10")

285mm (1'0")

12.3

33.6

435mm (1'6")

17.3

44.0

585mm (2'0")

22.5

54.4

2440mm (8'0") 2240mm (7'5") 285mm (1'0") 13 35.8
435mm (1'6") 18.3 46.4
585mm (2'0") 23.7 57.2

Note: The imperial figures stated above are approximate nominal measurements
