MP125 and HSK150 Hydraulic Struts

About MP125 and HSK150 Hydraulic Struts

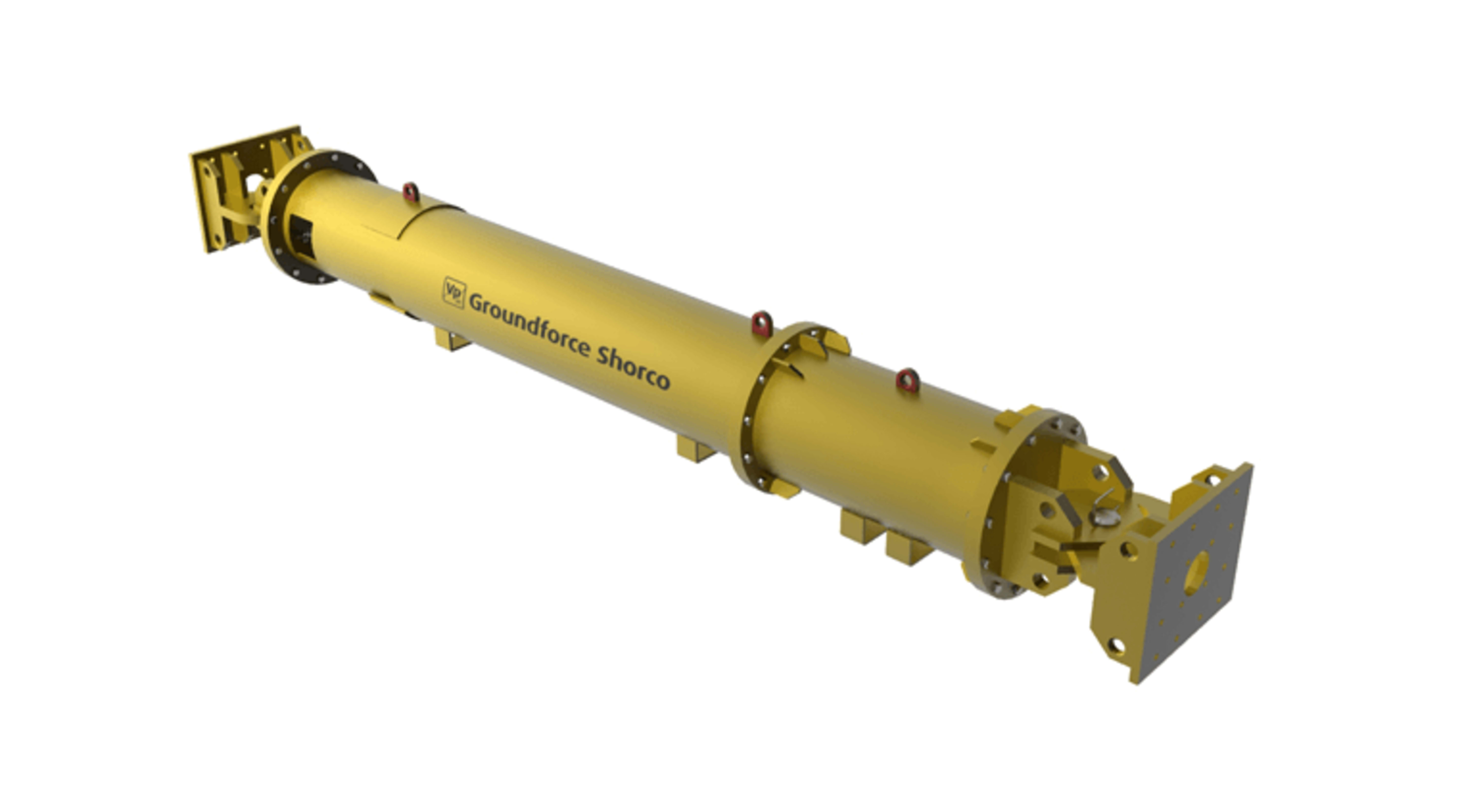

The MP125/150 is a modular format medium-duty hydraulic strut combining the compressive strength of steel tube with the convenience of hydraulic actuation for length adjustment and pre-loading potential. Swivel end bearing units allow for various strutting configurations within an excavation, with or without waling beams.

Both MP125 and MP150 struts use nominally 500mm diameter tubular sections as the main structural member. At shorter spans, the hydraulic capacity limits the axial load and at longer spans, the potential for lateral buckling of the extension sections dictates overall axial capacity.

MP125 / 150 struts can be configured to work within an operating range of 3.6m to 20.0m without the need for intermediate support and are able to withstand working axial loads at shorter spans up to 125 / 150 tonnes respectively.


MP125 - 125 Tonne Capacity

also available in a 150 tonne format

Ref.

Operating Range (m)

Weight
(Kg)

Min Max
1 4.6  5.7 2455
2 5.6 6.7 2600
3 6.6 7.7 2820
4 7.6 8.7 2885
5 8.6 9.7 3100
6 9.6 10.7 3250
7 10.6 11.7 3465
8 11.6 12.7 3465
9 12.6 13.7 3680
10 13.6 14.7 3825
11 14.6 15.7 4045
12 15.6 16.7 4110

HSK150 - 150 Tonne Capacity

Ref.

Operating Range (m)

Weight
(Kg)

Min Max
4 2.9 4.1 1445
5 3.9 5.1 1591
6 4.9 6.1 1737
7 5.9 7.1 1883
8 6.9 8.1 1972
9 7.9 9.1 2061
10 8.9 10.1 2150
11 9.9 11.1 2555
12 10.9 12.1 2701
13 11.9 13.1 2847
14 12.9 14.1 2936
15 13.9 15.1 3145
16 14.9 16.1 3291
17 15.9 17.1 3437
18 16.9 18.1 3526
