Our Lightweight Bracing Equipment

Lightweight Bracing Equipment are extremely quick to install and remove and can be used in practically any shape of excavation. Our shoring systems are designed for each excavation and we aim to eliminate on-site welding, cutting and waste. Our systems provide a versatile cost effective alternative to traditional fabricated steel frames and tie back systems.

Filter
Filter
Filter
Aluminium Hydraulic Brace (540 Braces)

Aluminium Hydraulic Brace (540 Braces)

The 540 brace is a lightweight hydraulic brace designed for small excavations. Individual legs are assembled to produce a 4-sided telescopic hydraulic bracing frame which is used in conjunction with trench sheeting to support square or rectangular excavations from 1.5m up to 3.1m long. Legs are constructed from high-yield steel sections and incorporate a single-acting hydraulic ram. This means the legs can be expanded and pressurised hydraulically.

Single Acting Manhole Brace

Single Acting Manhole Brace

The Single Acting Manhole Brace range consists of a series of non-modular, (single piece) hydraulically adjustable legs which are connected together to support square or rectangular excavation sizes ranging from 1.15m to 3.0m.

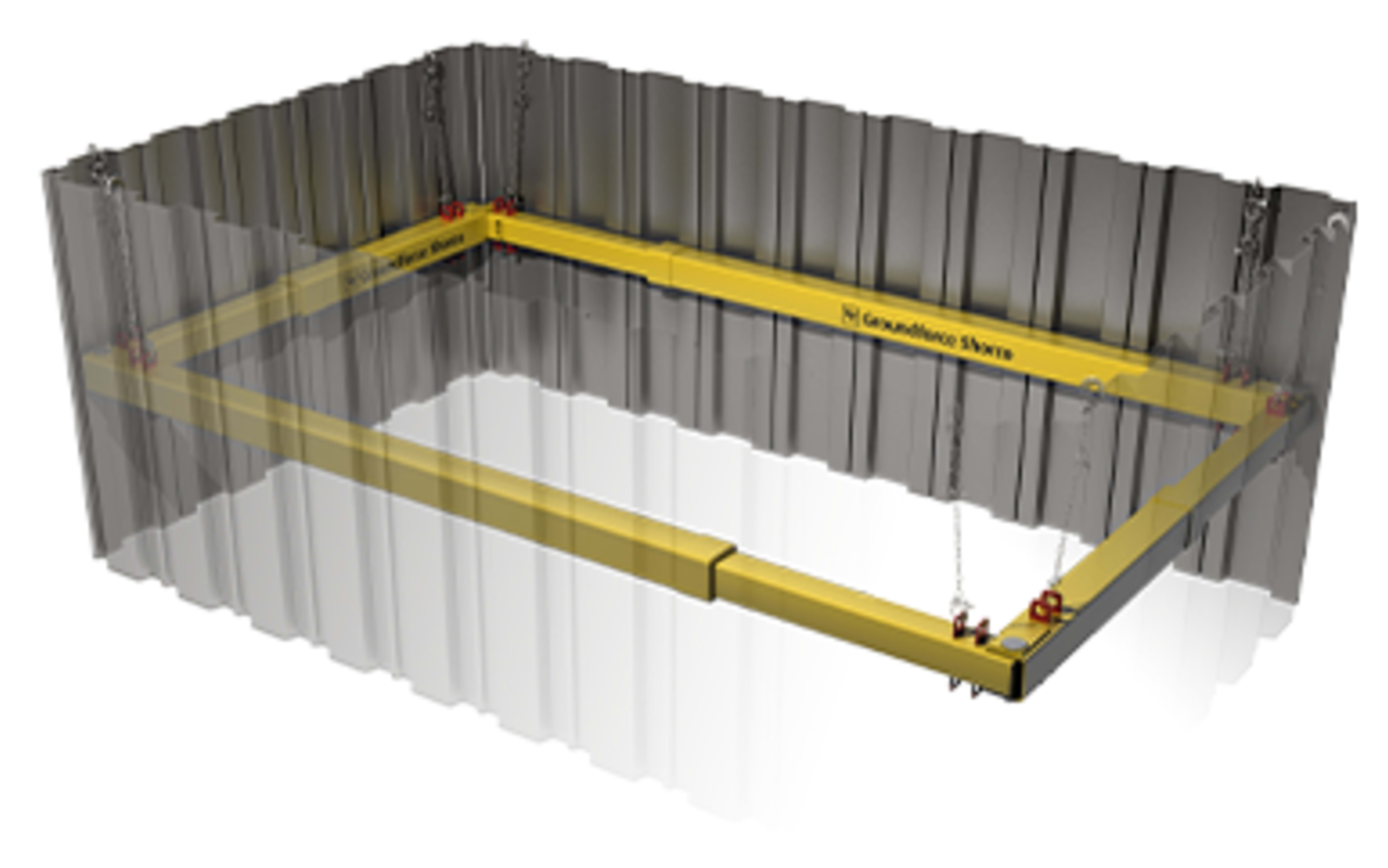

GF Double Acting Manhole Brace

GF Double Acting Manhole Brace

The GF Double Acting Manhole Brace range consists of a series of hydraulically adjustable legs which, when assembled together, form a 4-sided telescopic hydraulic bracing frame which is used in conjunction with trench sheeting to support square or rectangular excavations from 2.0m up to 6.0m long.

Mechshore Double Acting Series

Mechshore Double Acting Series

The Mechshore Double Acting Manhole Brace range consists of a series of non-modular hydraulically adjustable legs which are connected together to form a mid-range load capacity bracing system to support square or rectangular excavation sizes from 1.5m to 8.3m.

FAQs

What is the Instagrid GO?

The Instagrid GO is a portable 110V power supply designed to deliver grid-like performance for construction and industrial use. It’s lightweight, emission-free, and operates quietly, making it a perfect alternative to traditional generators.


Can Instagrid mobile power supply replace a generator on site?

Yes, the Instagrid GO provides a clean, silent alternative to petrol or diesel generators, and is suitable for powering tools, lighting, and charging stations, with no fuel, noise, or exhaust emissions.


How long does the battery last?

Battery life depends on the type of equipment being used. The battery capacity for the Instagrid GO portable power supply unit provides 2,074 Wh of battery capacity.


What types of equipment can the Instagrid GO power?

The Instagrid GO can power a wide range of construction power tools, including drills, saws, lighting, and charging stations. It’s also capable of powering the Groundforce 110V Electric Shoring Pump, making it versatile for various on-site tasks.


How long does it take to recharge the power supply?

The Instagrid GO portable power supply unit can be fully recharged in 1.5 hours using a standard power supply.


Is the Instagrid GO safe to use indoors?

Yes. The Instagrid Go produces zero exhaust emissions and minimal noise, making it safe to use indoors or in enclosed spaces where petrol or diesel generators would not be suitable.


Is there any maintenance required for the Instagrid GO?

No, the Instagrid GO requires no regular maintenance, oil changes, or fuel top-ups, making it a low-maintenance alternative to traditional generators.


Can the Instagrid GO unit be used while it’s charging?

No. The unit cannot power tools while charging, it must be fully charged before use.


Do Groundforce offer training courses?

Groundforce Training Services offer industry leading accredited safety training primarily for those working in utilities, construction and civil engineering. From short duration health and safety awareness to more complex or specialist safety consultancy solutions.
