Model & Description

Throat Depth
(mm)

Width
(mm)

WLL (t)

Weight
(Kg)

Pin
Diameter
(mm)
Standard Duty Extractor

200

20

3

11

22
Heavy Duty Extractor

250

20

9

24

35

    Sheet Pile Extractors are specifically designed for the extraction of driven trench sheets and piles: they should not be used for handling or pitching operations.



FAQs

Related Files

(884.91 KB)
Sheet Pile Extractor User Guide

Related Products

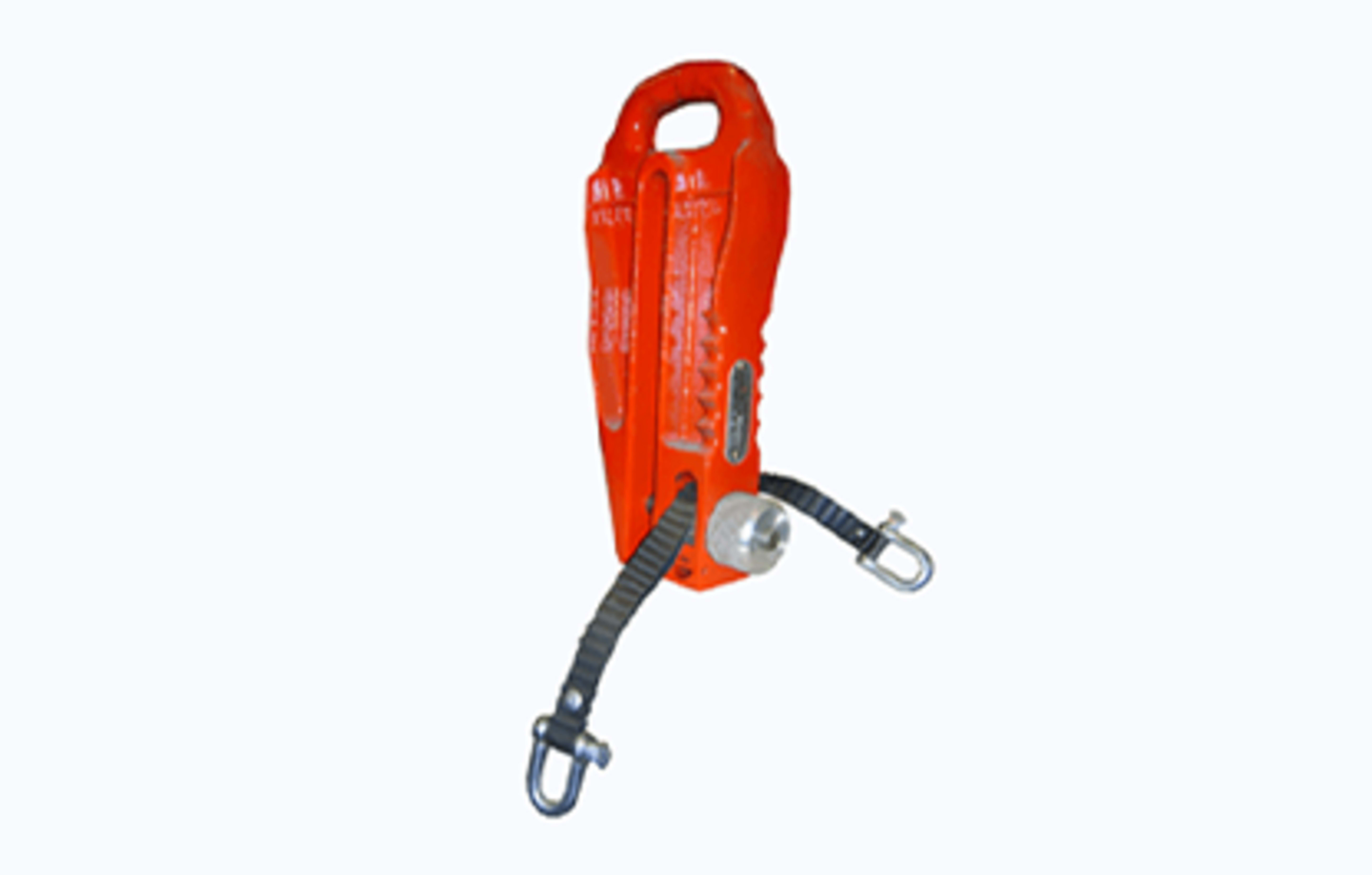

Ratchet Release Shackle

Ratchet Release Shackle

A Ratchet Release Shackle is a piece of ancillary equipment which is specifically designed as a piling shackle for pitching trench sheets and piles using appropriate lifting equipment. This is a ground release shackle which enables sheet piles to be lifted vertically into temporary guides and then safely released from ground level once the sheet or pile is secured. Ground release shackle suppliers emphasise that to uphold the safe use of shackles, they must not be used for pile extraction.

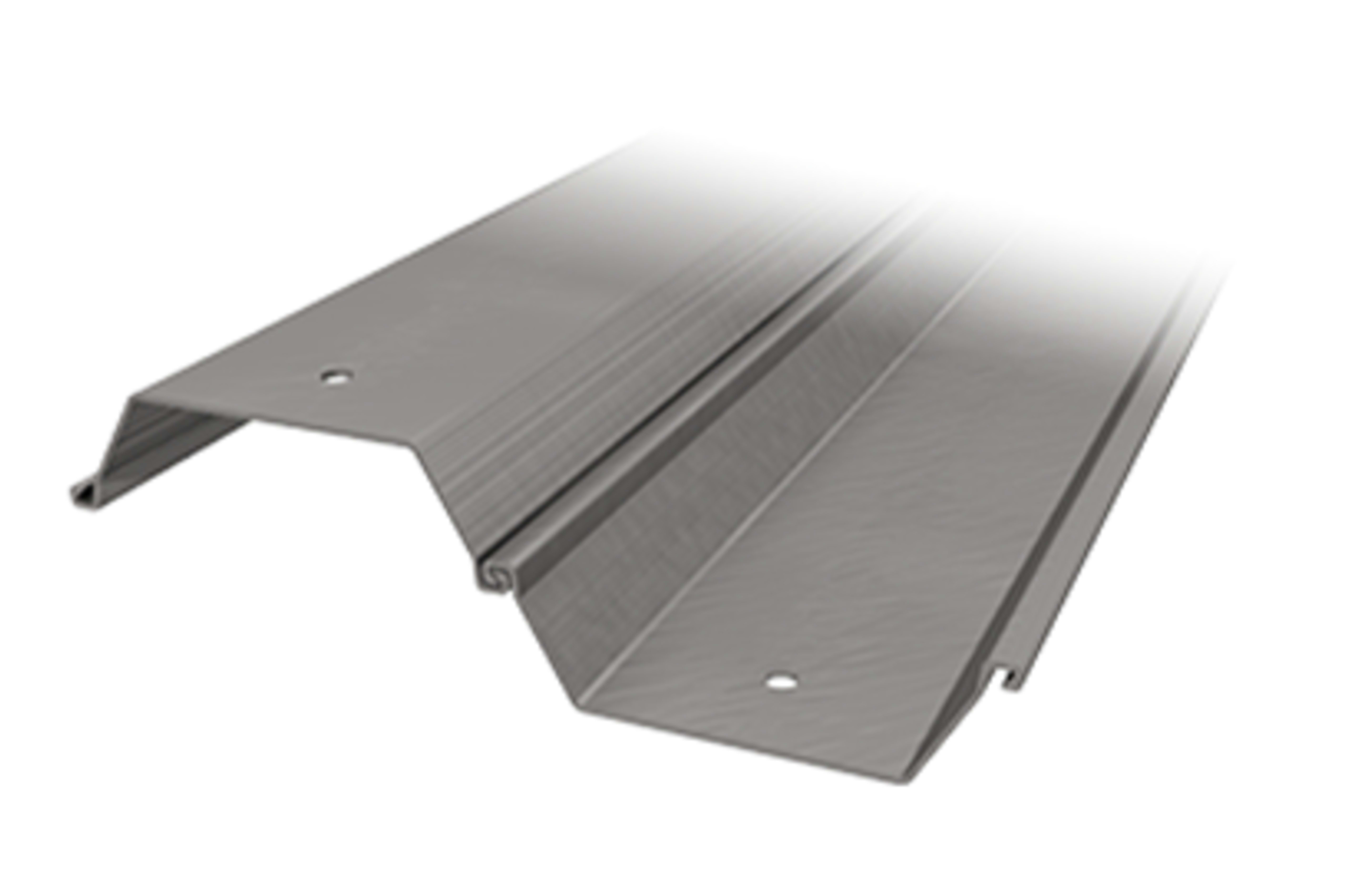

Trench Sheet (Standard)

Trench Sheet (Standard)

Groundforce Shorco offer a comprehensive range of cold formed lapped trench sheets and interlocking light pile sections to provide a cost effective solution for most excavation support applications. Many of the sections are produced from high yield steel which provides an exceptional strength-to-weight ratio resulting excellent durability whilst driving and resistance to on-site damage.

Larssen Sheet Piles

Larssen Sheet Piles

Larssen Piles are a type of sheet piling that has an interlocking section which forms a sheet piling retaining wall. Each sheet pile section is connected at 180 degrees from the previous one to form a uniform wall with alternating troughs and peaks. Larssen Sheet Piles are typically used in temporary or permanent cofferdams, retaining walls and foundation construction.

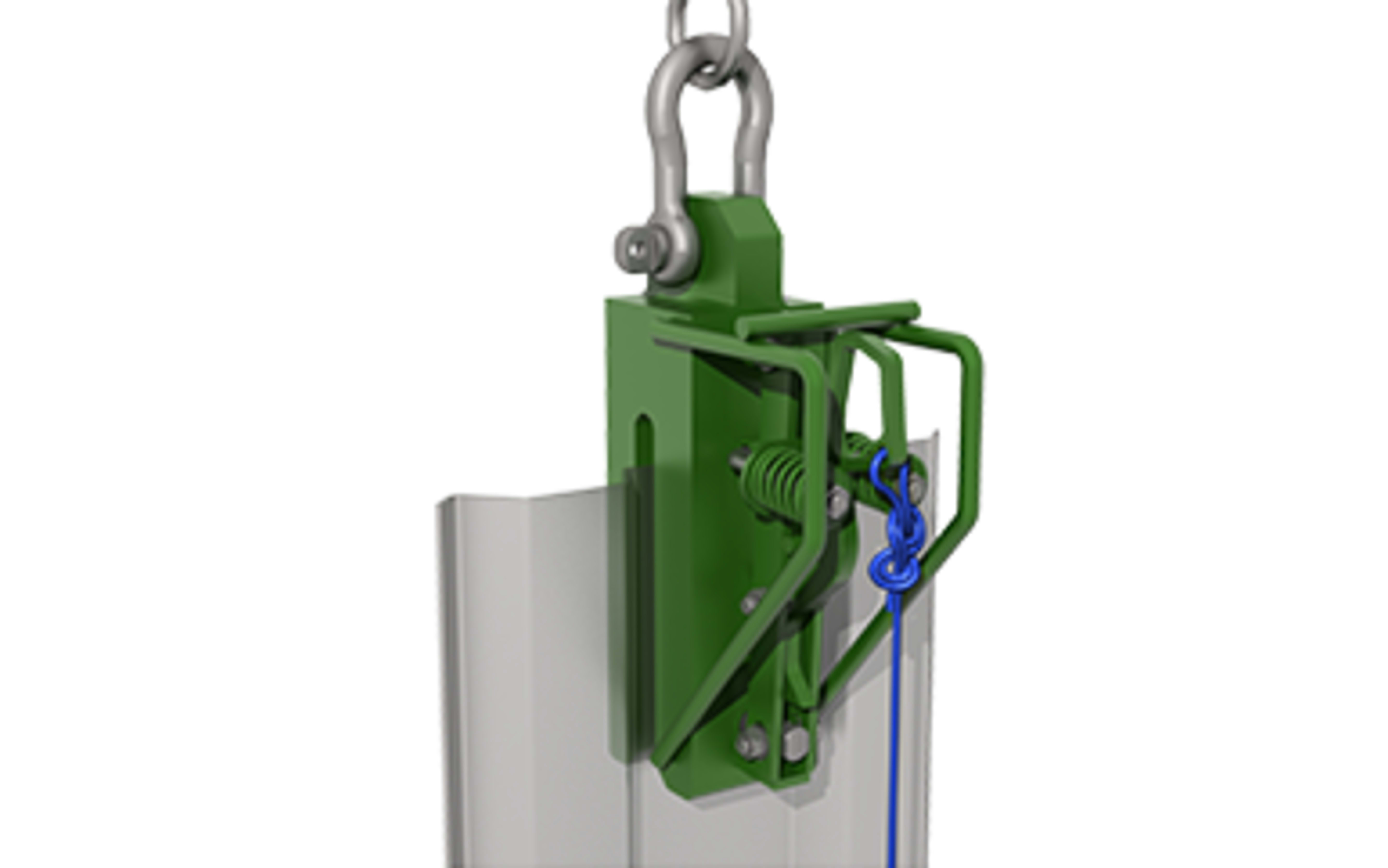

Pitching Shackles
