SurroundSafe

About SurroundSafe

SurroundSafe is a range of platform units available to aid compliance with Working at Height Regulations during the placement of the concrete surrounds to manhole rings.

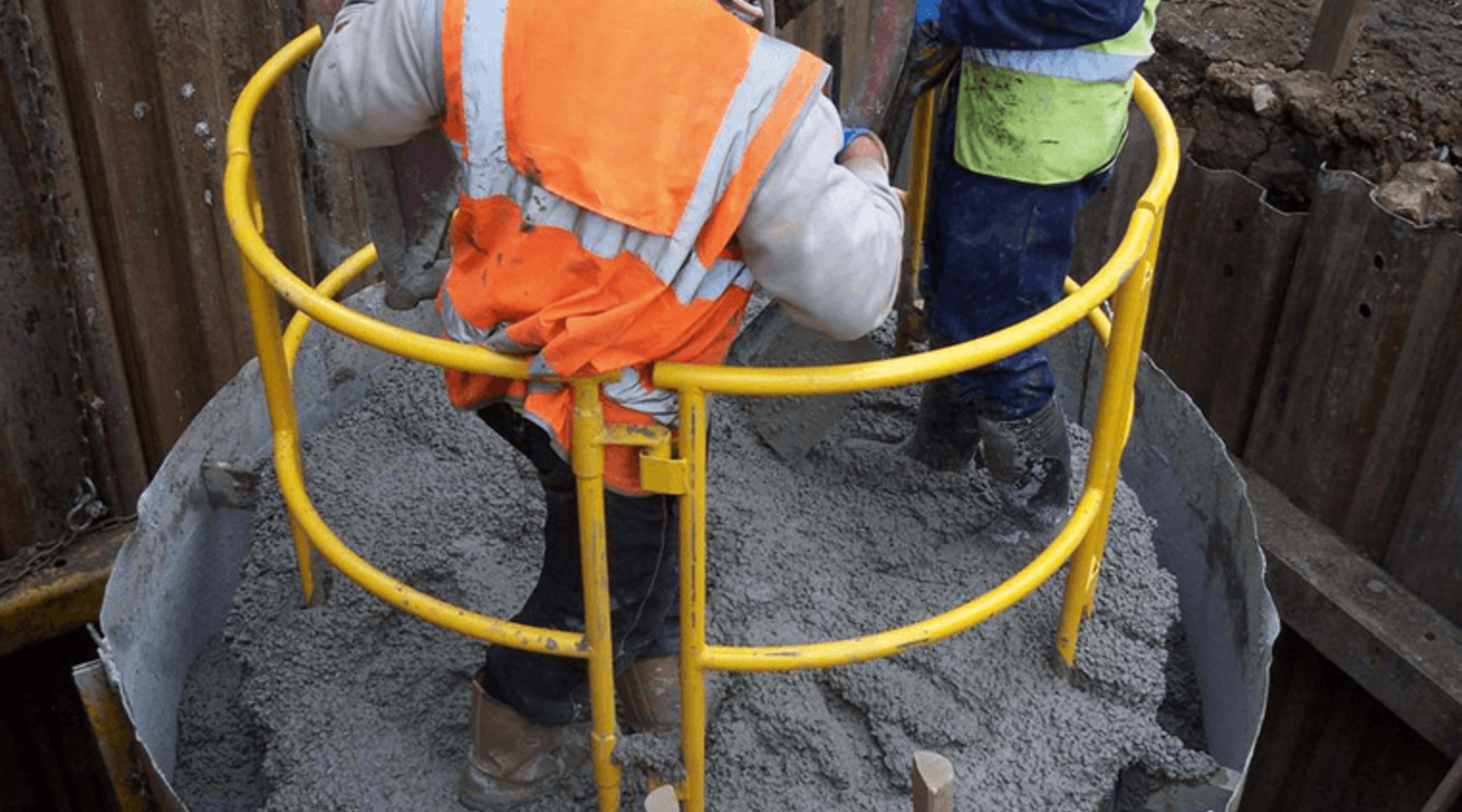

The unit sits on top of the manhole rings and allows users to work safely at height whilst discharging concrete into manhole shutters. Each SurroundSafe is constructed of a combination of standard handrail panels, a single gate panel and a base panel.

  • Prevents falls from height during the placement of concrete surround to manhole rings
  • Aids safe placement of concrete at height
  • Range of units to suit most pre-cast ring sizes
  • Reduction in overspill and material wastage
  • Keeps benching free of debris
  • Can also be used on manhole cover slab

Specification

Item Code Description Nominal Ring Diameter (mm) Platform Diameter (mm)  Number of Handrail Panels per Unit Base Panels (kg)  Unit Weight (kg)
MHB.105F 1050 Manhole SurroundSafe (1.05m)  1050 1210 3 + gate panel 101 141
MHB.120F  1200 Manhole SurroundSafe (1.2m)  1200 1380 3 + gate panel 128 168
MHB.135F  1350 Manhole SurroundSafe (1.35m) 1350 1540 4 + gate panel 163 214
MHB.150F  1500 Manhole SurroundSafe (1.5m)  1500 1700 5 + gate panel 192 243
MHB.180F 1800 Manhole SurroundSafe (1.8m)  1800 2030 6 + gate panel 270 341
MHB.210F 2100 Manhole SurroundSafe (2.1m) 2100 2350 7 + gate panel 362 443
MHB.240F 2400 Manhole SurroundSafe (2.4m)  2400 2680 8 + gate panel 468 560
MHB.270F 2700 Manhole SurroundSafe (2.7m)  2700 3050 9 + gate panel 603 705
