Modular Aluminium Panel Box (MAP Box)

About Modular Aluminium Panel Box (MAP Box)

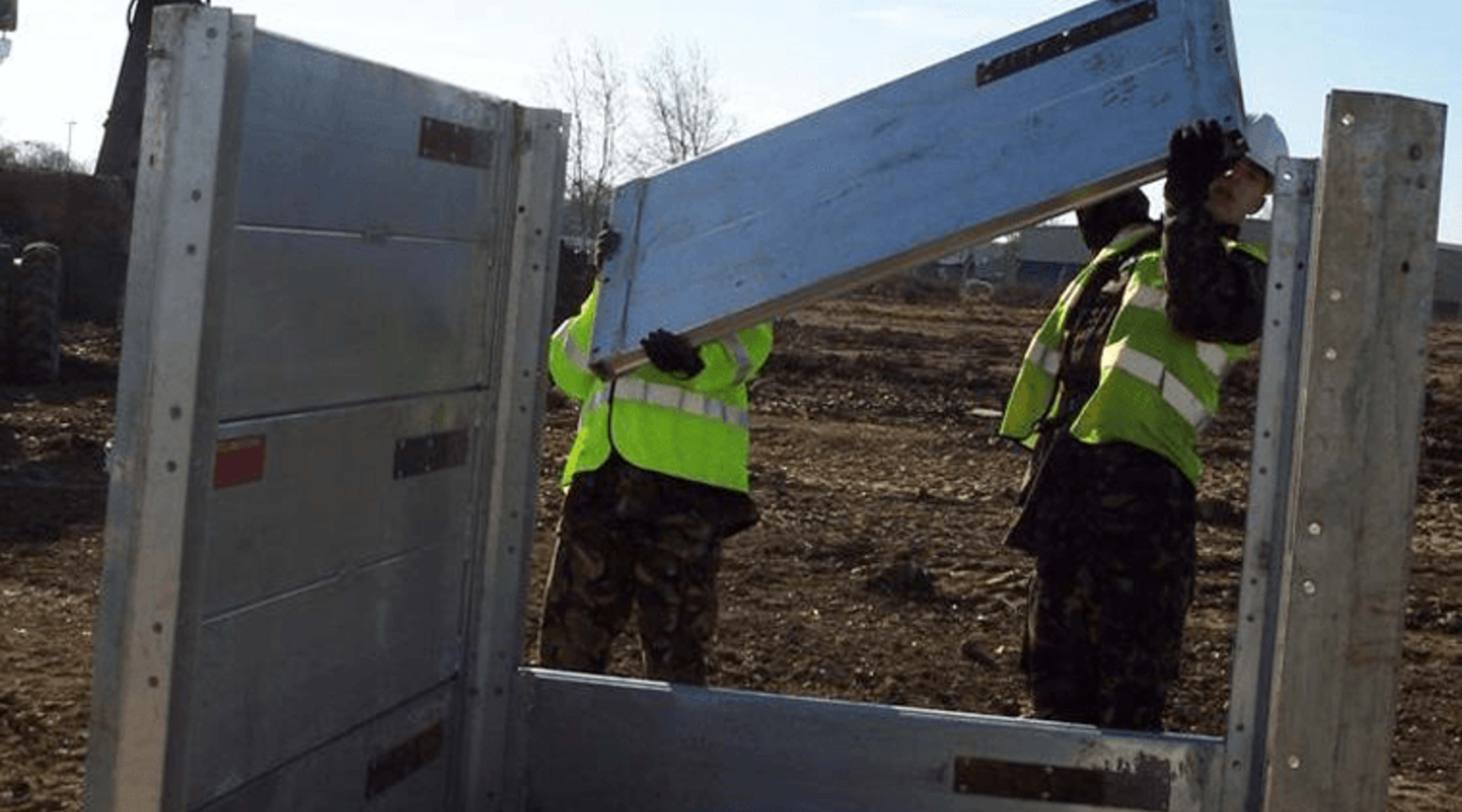

The MAP (Modular Aluminium Panel) Box is a lightweight aluminium modular box system that can be assembled by hand and handled on sites by small excavators. Using just three main components - panels, struts and corner posts - the MAP system can be configured to provide either 2, 3 or 4-sided support offering the user great versatility on site. Being predominantly of aluminium construction, an assembled box can weigh as little 243kg, whilst providing the strength of a conventional steel trench box.

It is extremely verstile which, combined with its low weight and high strength characteristics, makes it ideal for handling and installation in challenging ground or where space is limited.

Benefits

Modular aluminium panels
Strong, yet lightweight
Range of sizes and configurations
Easy to assemble and install

Add to Enquiry Basket

GF.EnquireNow

Specification

	Box Type A	Box Type B	Box Type C	Box Type D
Box Length (mm)	1223	1833	2409	3052
Box Height (mm)	1.2m or 1.8m	1.2m or 1.8m	1.2m or 1.8m	1.2m or 1.8m
Panel Height (mm)*	600	600	600	600
Panel Thickness (mm)	63	63	63	63
Plan Clearance Between Struts (mm)	1045	1705	2331	2875
Box Weight (kg)	243	295	336	391

Trench Widths

	External Trench Width (mm) Min - Max	Weight (kg)
Strut Ref 1	910 - 1300	20
Strut Ref 2	1130 - 1640	24
Strut Ref 3	1640 - 2555	36
Strut Ref 4	1940 - 3055	44

Panels are modular in multiples of 600mm, corner posts are 1.2m or 1.8m in height
