Code Description Size (mm) Weight (kg)
ES.M18 Steel Mesh Panel 1800x1200 10
ES.M27 Steel Mesh Panel 2700x1200 15
ES.SP Posts 1200 4
ES.SC Sheet Clamp n/a 2.5
ES.BC Box Clamp n/a 3
ES.DBC Drag Box Clamp n/a 3.5
ES.MC Multi Clamp n/a 4
ES.WC Wall Clamp n/a 7
ES.WCXL Wall Clamp XL n/a 7.5

    The system provides a protective barrier to help prevent falls from height into excavations. Note: It should not be used to restrain or support loads.

    The system can be used on most trench sheet and steel pile profiles up to 25mm thick, on box panels up to 170mm plate thickness and on walls up to 565mm thick.

FAQs

What is EdgeSafe?

EdgeSafe and EdgeSafe MKII are similar lightweight mesh barrier systems.


What is EdgeSafe used for?

EdgeSafe provides a protective barrier to help prevent falls from height into excavations and can be used on short or long continuous runs.


What is the difference between EdgeSafe and EdgeSafe MKII?

EdgeSafe MKII introduces an additional level of safety by preventing possible uplift of the posts and/or panels due to external forces. EdgeSafe MKII is designed in accordance with BS EN 13374 2018 Class A.


Which Groundforce Shorco products most commonly use EdgeSafe?

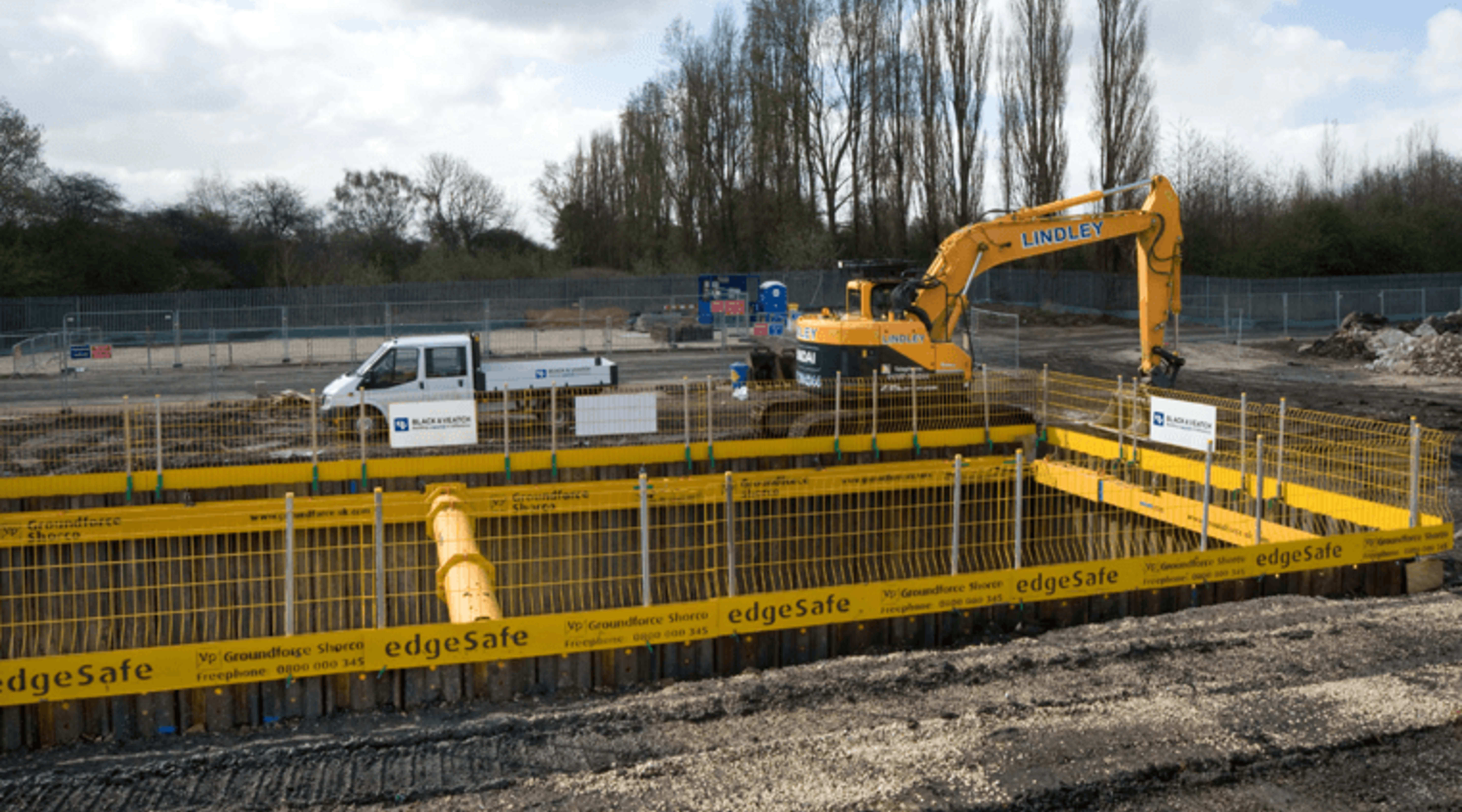

EdgeSafe is commonly used on sheeted excavations. It is also used for edge protection on Trench, Manhole and Drag Boxes.


Does EdgeSafe have any limitations?

EdgeSafe is An effective protective barrier used widely throughout the construction industry, however EdgeSafe should not be used to restrain or support loads.


How many components make up EdgeSafe?

EdgeSafe comprises three main components: Steel Mesh Panels, Posts and various clamps (depending on application). A stillage is also provided for transport.


Is EdgeSafe easy to assemble and fit?

Yes, Simply attach the clamps and the EdgeSafe panels and posts can then be fitted in seconds


Is there a video available that demonstrates EdgeSafe?

Yes, a video showing a number of Groundforce Shorco SiteSafe solutions, including EdgeSafe is available to watch now on our YouTube channel.


Related Files

(2.34 MB)
Edgesafe Edge Protection User Guide
(2.15 MB)
EdgeSafe Manhole Box Edge Protection User Guide
(1.45 MB)
EdgeSafe MKII User Guide
(1.90 MB)
Quick Start User Guide for EdgeSafe and SledgeSafe

SiteSafe Solutions: Typical Installation Methodology

Groundforce Shorco are always striving to develop ancillary equipment to enhance their product offerings. Demonstrated in this video are the associated products that can be used in conjunction with boxes and braces to improve safety and access in and around excavations.

Enquire Now

Related Products

SledgeSafe

SledgeSafe

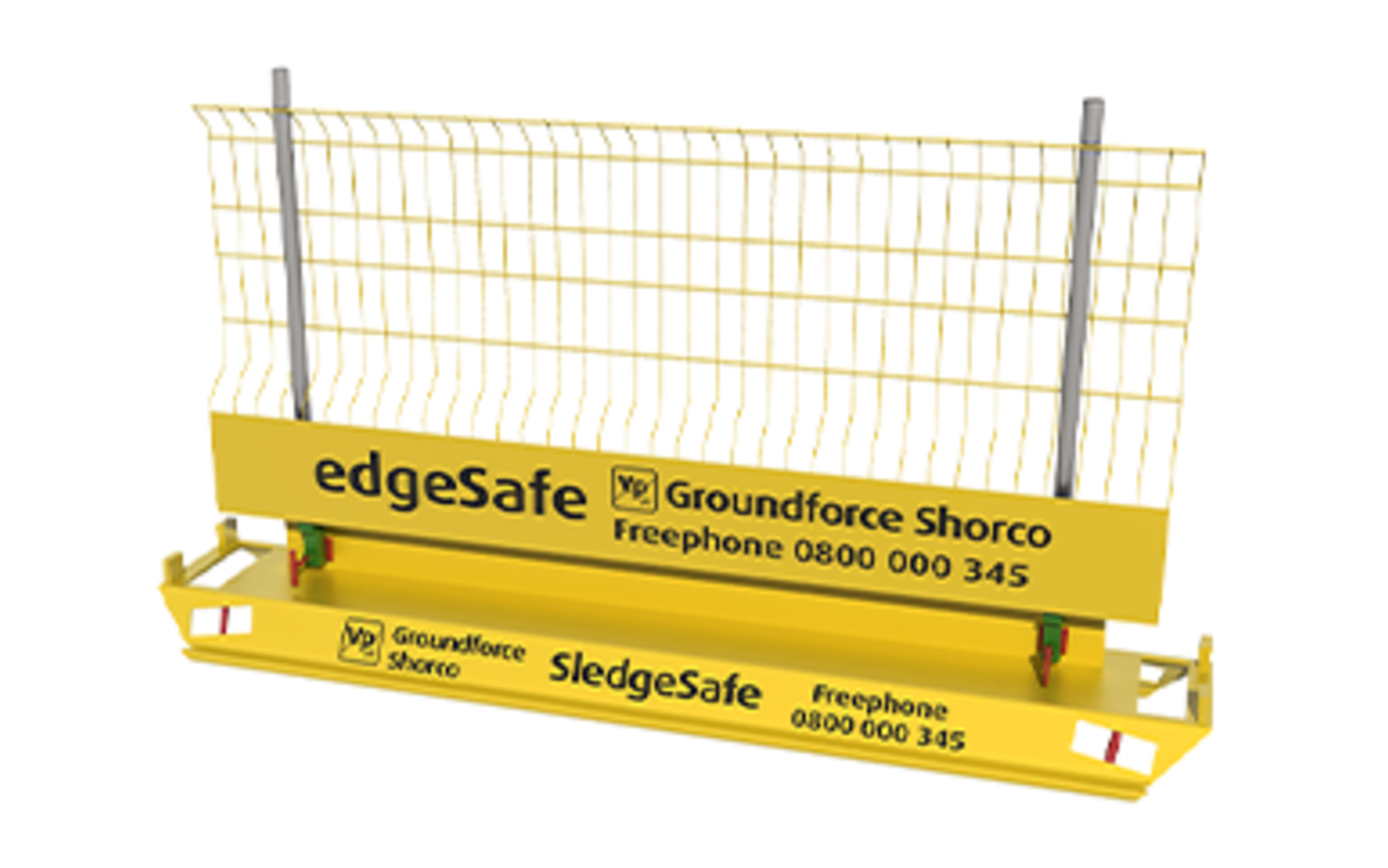

SledgeSafe is a heavy duty mobile barrier intended to demonstrate hazardous working areas and provide localised protection to personnel on construction sites: the system complies with BS EN 13374: 2004 Class A.The heavy freestanding base unit incorporates the lightweight, flexible Groundforce EdgeSafe mesh barrier for ease of assembly.
