Davit Arm                      Adjustable Wall Adaptor
Max Working Capacity 164kg Width 170mm Max Working Capacity 164kg
Length (Reach) Max 610mm  Height  Min1993mm - Max 3013mm  Adjustment Range 152mm - 400mm
Fall Arrest Winch Length 25m Weight  25kg  Weight 30kg

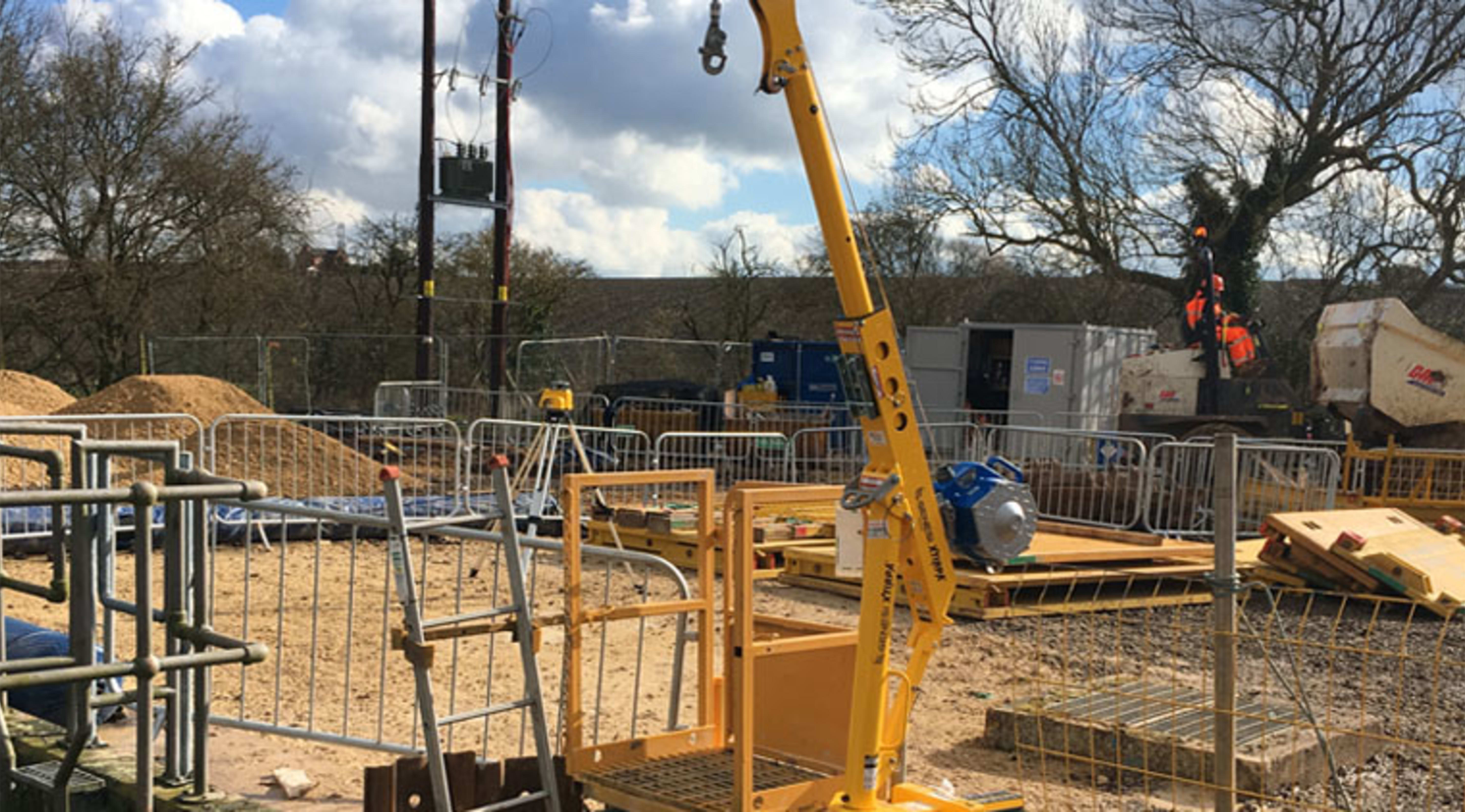

    Comprising a built in mast that provides a reach of up to 610mm, this compact and lightweight system offers the ideal solution for users requiring access into confined spaces where space and height is particularly restricted. Typical applications include: water treatment works, pump houses, filter replacement and works waste.

    Advanced design and the use of an advanced composite makes this system is one of the lightest and most ergonomic systems of its kind on the market and is in compliance with ANSI, OSHA, CSA and EN 795:2012 standards.

FAQs

What is the Davit Arm Standard Trench System used for?

The Davit Arm Standard Trench System is part of a personal protection equipment range intended to act as a support structure or anchor for use in fall protection, work positioning and rescue within confined spaces.


What components make up the Davit Arm Standard Trench System?

The system comprises an extendable mast and davit arm that provides a reach of up to 610mm, an Adjustable Wall Adaptor and winches, together with cables.


In what scenarios is the Davit Arm Standard Trench System used?

This compact and lightweight system offers the ideal solution for users requiring access into confined spaces where space and height is particularly restricted.


In which applications is the Standard Davit Arm typically used?

Typical applications include: water treatment works, pump houses, filter replacement and works waste.


Is the Davit Arm Standard Trench system a lightweight product?

Advanced design and the use of an advanced composite makes this system one of the lightest and most ergonomic systems of its kind on the market.


Is the Davit Arm Standard Trench system an industry compliant product?

The Davit Arm Standard Trench System is in compliance with ANSI, OSHA, CSA and EN 795:2012 standards.


Do Groundforce offer training courses for the use of Davit Arms ?

Yes, Groundforce Training offers a safety course which has been designed to cover current legislation and guidance including the HSE’s L101 and the use of Davit Arm systems along with stretchers and harnesses. Learners will become familiarised with the component parts, assembly and use of Davit Arm systems on trench boxes and sheet piles.
