Our Trench Box Solutions

Discover our versatile range of Trench Box Solutions – including trench boxes, manhole boxes, backhoe boxes and drag boxes, providing unparalleled support for construction projects.



Trench Boxes for Safe Excavation Support

Trench Boxes are the ultimate solution for rapid trench shoring, offering stability without extra equipment. Our Trench Box is available in mini, standard, and multi-mega sizes.



Explore Our Range of Trench Shoring Options

Explore our wider range of trench boxes with our Backhoe Trench Box for small trenching applications, Premier Trench Box for supporting deep trenches, and Rolling Strut Trench Box allowing parallel plate movement to minimise potential soil movements.

Our comprehensive range of trench boxes are designed to provide the highest levels of safety and protection. Constructed from strong and durable materials, our trench boxes ensure maximum strength and reliability.

Have more questions or want some further reading on trench boxes? Check our Trench Box FAQ page.

If you would like to know more about the types of trench box hire available, enquire with our team today.

Filter
Filter
Filter
Trench Box

Trench Box

For trenches up to 6.6m deep A trench box is generally the first choice for the rapid shoring of trench runs due to the speed and simplicity of installation. They are typically suitable for use in trenches up to 4.9m wide x 6.6m deep in reasonable ground conditions, they are not recommended in unmanaged, waterlogged ground. Groundforce offer a wide range of trench box sizes with various strut types, providing a safe solution on site.

Backhoe Trench Box

Backhoe Trench Box

The Backhoe Trench Box is a lightweight yet robust solution for small trenching applications. With a load capacity of 20 kN/m2, it can be used to depths of 4 metres in most soil types. It's ideal for use on building sites and construction projects where small excavator handling is essential. Developed to meet the needs of the contractor when using smaller 180 degree backhoe rubber tyred excavators, this box is supremely light yet provides solid support.

Manhole Box

Manhole Box

A manhole box is similar to a trench box in it's basic function, but they incorporate integral end return panels for extra ground support when placing pre-cast manhole rings, as an alternative to sheets and frames. There are five available sizes catering to common manhole ring sizes. They can be quickly assembled and installed without an operator needing to enter the unsupported excavation, supporting trenches up to 5.5m using the base module and various struts. Ideal for most ground conditions.

Backhoe Manhole Box

Backhoe Manhole Box

The Backhoe Manhole Box is lightweight and ideal for installing pre-cast manhole rings and trench runs, without the need to alter the trench width. It has a typical base weight of 912kg, and is suitable for excavations up to 4.0m deep. It has a simple pinned strut arrangement, with a range of strut lengths available for non-square configurations and a 1.2m clearance under the bottom strut. End closure panels are available to support the open ends of the box, and handrails can be added for extra safety. Browse more of our Trench Boxes

Premier Trench Box

Premier Trench Box

The Premier Trench Box provides a dependable, robust solution to deep pipe laying activities, designed with high rigidity, making it ideal for supporting deep trenches. With the ability to achieve trench depths up to 6.6m using a base and two top extension units, it offers maximum versatility. The Premier Trench Box has a large 2.45m clearance under the lower struts and internal trench widths ranging from 0.8m to 4.7m. Handrails and ladder-safe panels are available for added protection. Find more Trench Box options.

Rolling Strut Trench Box

Rolling Strut Trench Box

The Rolling Strut Trench Box differs from a conventional trench box as the rolling struts enable both plates to move independently of each other during installation and removal. Its unique design allows for parallel plate movement during installation and removal, minimizing potential soil movements. This makes it a more stable and safe option for excavation work. The construction of the Rolling Strut Trench Box enables greater under strut clearances of up to 3.1m in comparison to conventional trench boxes .

Backhoe Drag Box

Backhoe Drag Box

The Backhoe Drag Box is a lightweight solution for small capacity machines and backhoe excavators. This lightweight box weighs less than one tonne, making it easy to manoeuvre. Designed for continuous pipe laying operations in self-supporting ground up to 4m in depth, this drag box is a reliable and efficient tool for any construction project. The Backhoe Drag Box is the ideal choice for those looking for a lightweight and versatile solution for their excavation needs. Browse all of our trench boxes available to hire.

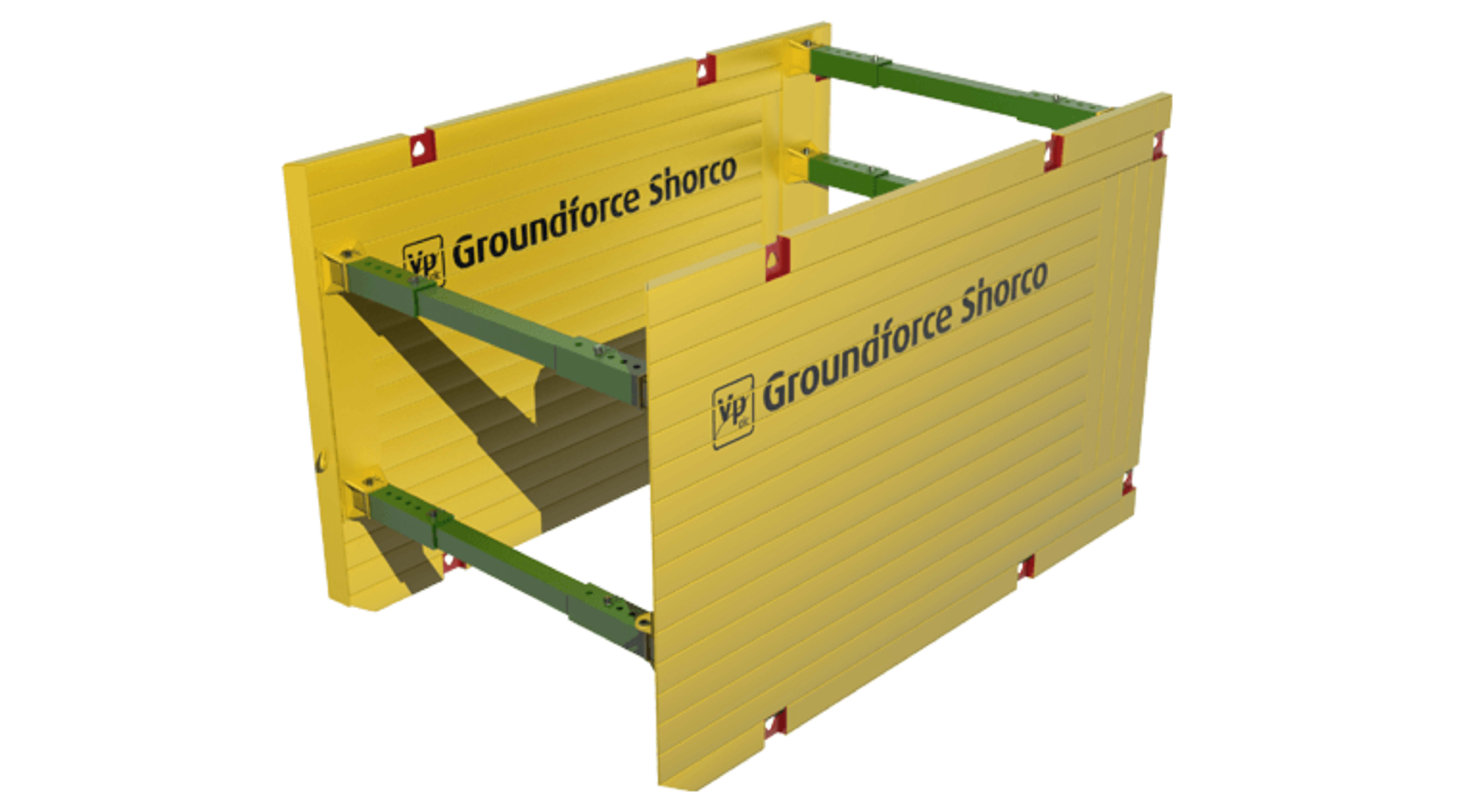

Super Drag Boxes

Super Drag Boxes

Drag boxes provide local support to trenches as moveable ‘shields’ generally in stable or self-supporting ground conditions. They are not intended for full panel height support of trench walls, as in the case of a traditional trench box , however correct use will considerably enhance productivity and safety. It must be noted that drag boxes are very heavy pieces of equipment and certain Drag Box models permit the use of top boxes and/or rear extensions so will require large excavators to handle them safely.

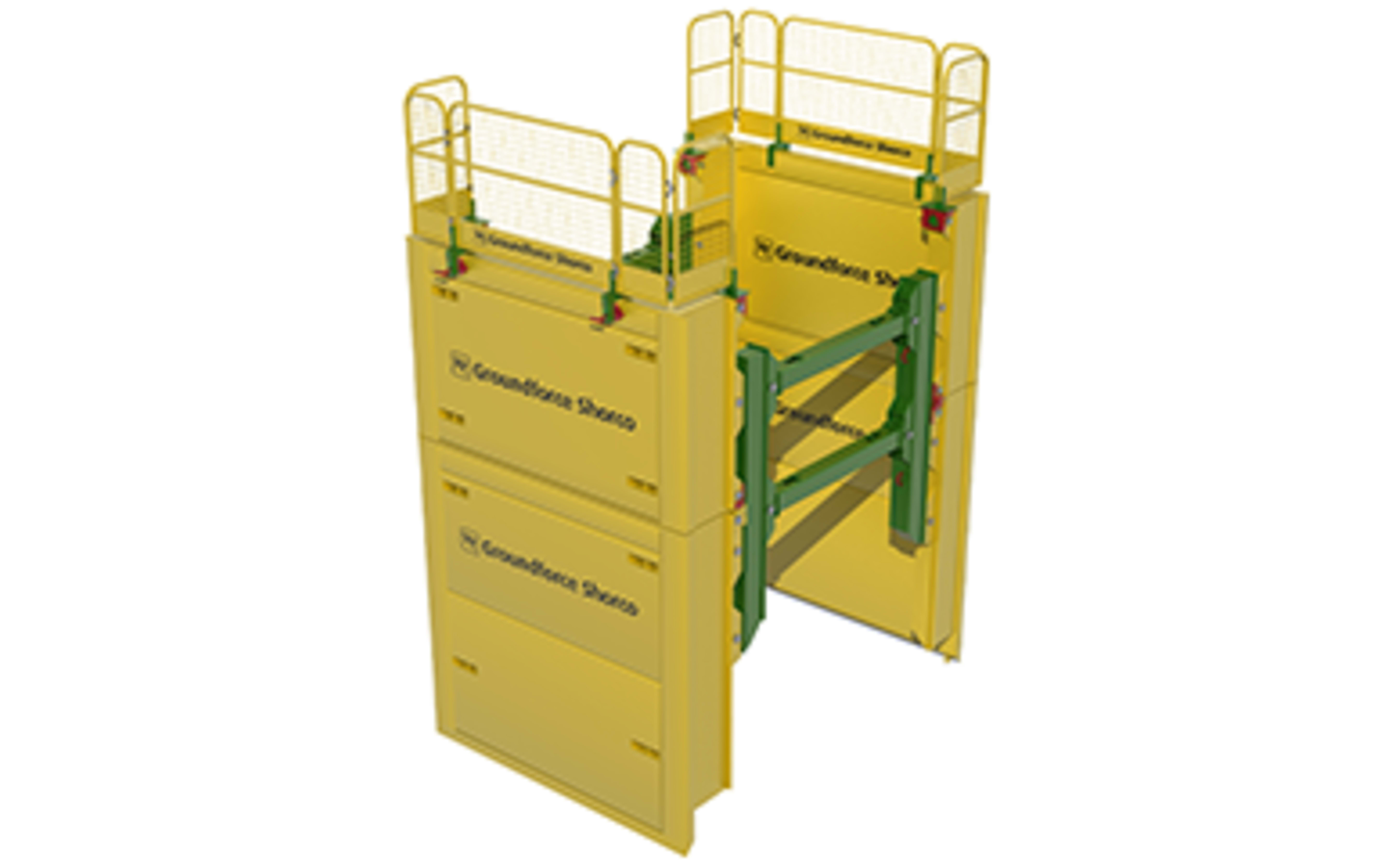

Hi-Clear Manhole Box

Hi-Clear Manhole Box

Hi-Clear Manhole box posts allow the connection of a base unit to a top unit, providing a 4m high box with only two struts as opposed to three. The lower strut is positioned higher in the assembly as to provide the added benefit of greater under-strut clearance. This improves height-to-width ratio, a crucial requirement when large diameter pipes and chambers need to be installed. The Hi-Clearance system uses a unique fixed length strutting system that is available in three different lengths. View all our trench boxes available to hire.

More About Groundforce Trench Boxes

Read about our range of trench boxes and excavation shoring systems



Since 1990, Groundforce has built a reputation as a trusted specialist in Trench Boxes and excavation support, offering one of the most complete product hire ranges in the UK for safe, compliant, and efficient groundworks. Whether you're laying pipes, installing manholes, or supporting linear trenches, our trench box solutions are trusted by contractors nationwide.

Trench Boxes

Groundforce trench boxes offer reliable, compliant protection against trench collapse across construction, utility, and groundwork projects. Available in a wide range of sizes, we offer Lightweight Trench Boxes, heavy-duty boxes for deeper excavations, and Backhoe Trench Boxes for sites with restricted access or limited lifting capacity.

Our specialist offerings include Premier Trench Boxes for deep trenches and Rolling Strut Trench Boxes for fast, on-site width adjustments. With both 3-sided and 4-sided configurations available, Groundforce shoring systems can be tailored to suit trench profiles, ground conditions, and access requirements.

Manhole Boxes

Groundforce Manhole Boxes offer 4-sided support for square and rectangular excavations, ideal for pre-cast manhole and chamber installs. Built-in end returns improve stability and help prevent collapse during utility works. Included in the range are Backhoe Manhole Boxes for tight-access sites, and Hi-Clear Manhole Boxes which are available in three lengths and offer greater under-strut clearance.

Drag Boxes

Groundforce drag boxes are designed for continuous trenching tasks like pipeline and cable installation, where speed and mobility are key. Pulled along the trench as work progresses, they reduce handling time while maintaining reliable ground support. Additional options include Groundforce’s Backhoe Drag Boxes for smaller excavators and confined spaces, and Super Drag Boxes for heavy-duty, long-run projects.

Shoring Box Key Features

Groundforce shoring boxes are designed for safe excavation and reliable performance across a wide range of construction site conditions.

Our systems include:

  • 3-sided and 4-sided configurations to match access and ground support needs
  • Rolling Strut Trench Boxes for quick on-site width adjustment
  • Modular, stackable designs for adaptable trench depths
  • Hi-Clear Boxes for working around tall pipework or chamber structures
  • Backhoe trench and Manhole Boxes for use in smaller excavations up to 4m deep
  • Drag Boxes as movable trench shields to provide support during excavation
  • Built-in lifting points and optional edge protection for safe handling and setup
  • Various Trench Box sizes for depths up to 6.6m, including the Mini, Standard, and Mega.

All Groundforce systems are tested, fully compliant with UK excavation safety standards, and supported by expert technical advice to help you specify with confidence.

Equipment undergoes rigorous testing to meet ISO 9001, 16001, and OHSAS 18001 standards. Groundforce’s extensive range of shoring hire equipment ensures that you can meet every foundation and groundworks requirements of your project.

Trench Box Applications

Groundforce provides various sizes of Trench Boxes, Manhole boxes, and Drag Boxes to support safe excavation across construction, utility, and infrastructure projects.

Some shoring applications include:

  • Utility trenching for water, gas, electric, and fibre optic installations.
  • Drainage and sewer excavations, using trench or manhole boxes for safe access to underground networks.
  • Cable laying projects, where drag boxes allow continuous trench support as work progresses.
  • Foundation trench support on housing, commercial, and civil engineering sites.
  • Shallow or confined excavations using lightweight Backhoe Trench Boxes.
  • Manhole construction and chamber installation, with 4-sided manhole boxes and Hi-Clear options for tall pipework.
  • General excavation work from deep to shallow trenches that require support to create a safe working environment.

Why Hire from Groundforce

Groundforce is one of the UK’s most trusted suppliers of Trench Boxes and shoring systems, with nationwide coverage and four decades of expertise.

  • Wide Product Range: Hire from a wide range of trench box sizes and configurations with Hi-Clear and Premier options for complex excavations.
  • Instant Design Generation: Use our bespoke box design tool, YourSolution+, to generate instant trench and Manhole Box designs tailored to your excavation depth, width, soil type, and surcharge.
  • Nationwide Delivery: With 18 depots across the UK, Grounforce deliver Trench Boxes, Manhole Boxes, and Drag Boxes quickly, wherever your site is located.
  • Fully Compliant Systems: All Groundforce shoring equipment meets UK regulations for excavation safety and temporary works.
  • Flexible Hire Options: Hire boxes for short or long-term use with full engineering support and fast turnaround.
  • Reliability: Groundforce trench shoring systems are engineered for strength, reusability, and performance in tough ground conditions.
  • Trusted Industry Experience: With over 40 years in the industry, Groundforce is a proven partner from construction sites to major infrastructure projects across the UK and Europe.

Related Shoring Products

Aluminium Hydraulic Brace (540 Brace)

Aluminium Hydraulic Brace (540 Brace)

The 540 brace is a lightweight hydraulic brace designed for small excavations. Individual legs are assembled to produce a 4-sided telescopic hydraulic bracing frame which is used in conjunction with trench sheeting to support square or rectangular excavations from 1.5m up to 2.4m long. Legs are constructed from high yield steel sections and incorporate a single acting hydraulic ram. This means the legs can be expanded and pressurised hydraulically.

GF Double Acting Manhole Brace

GF Double Acting Manhole Brace

The GF Double Acting Manhole Brace range consists of a series of hydraulically adjustable legs which, when assembled together, form a 4-sided telescopic hydraulic bracing frame which is used in conjunction with trench sheeting to support square or rectangular excavations from 2.0m up to 6.0m long.

Lifting Chains

Lifting Chains

Lifting Chains are specifically configured for lifting Groundforce shoring equipment and are available in a range of lengths, legs and capacities.

Modular Aluminium Panel Box (MAP Box)

Modular Aluminium Panel Box (MAP Box)

The MAP Box is a lightweight modular box system that can be assembled by hand and handled by a 180 degree rubber tyred excavator. Using just three main components: panels, struts and corner posts, the system provides great versatility by allowing 2, 3, and 4 sided support as the job demands. Box weights start as low as 240kg for 2- sided configurations. The portability and ease of handling make the system ideal for emergency uses where rapid response and limited working space rule out heavier equipment.

Trench Sheet (Standard)

Trench Sheet (Standard)

Groundforce Shorco offer a comprehensive range of cold formed lapped trench sheets and interlocking light pile sections to provide a cost effective solution for most excavation support applications. Many of the sections are produced from high yield steel which provides an exceptional strength-to-weight ratio resulting excellent durability whilst driving and resistance to on-site damage.

Ancillary Products

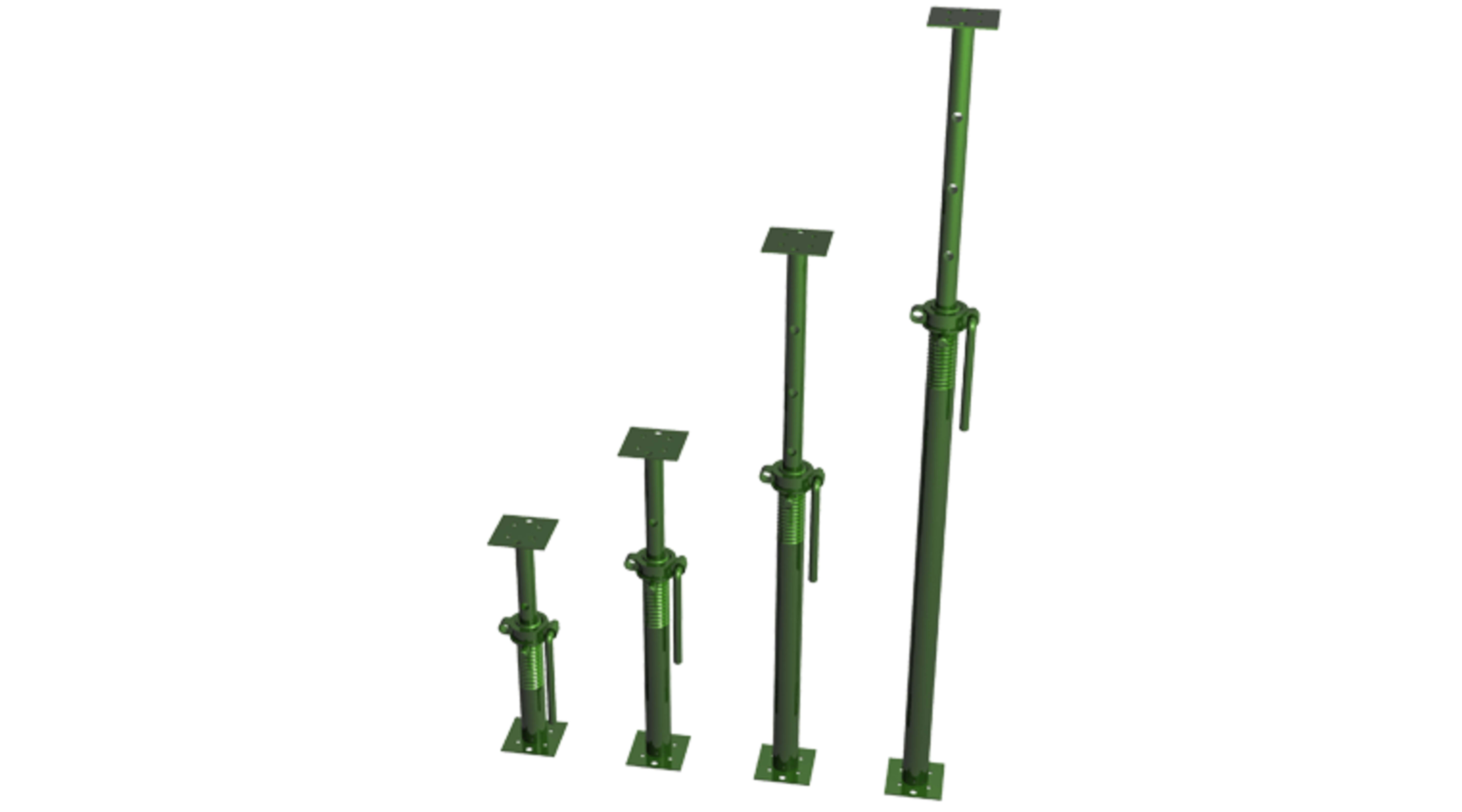

Adjustable Props

Adjustable Props

Strong and durable props for general application

Driving Caps

Driving Caps

Driving Caps are specifically designed to aid the installation of trench sheets. They are simple to fit and use and act as a protective shield which vastly reduces end damage to trench sheets while improving the driving process. Caps are available in two sizes to cover the range of Groundforce trench sheets.

Manhole Ring Lifter

Manhole Ring Lifter

This universal mechanical attachment allows Manhole Rings and cones to be safely gripped internally for precise transportation and installation. Reducing the need for manual intervention, and keeping operatives clear of the slewing excavator, means the Manhole Ring Lifter introduces greater safety in handling operations by assigning much of the control to the excavator driver.

Manhole Shutters

Manhole Shutters

Manhole Shutters are designed to support a nominal concrete surround of 150mm to the outside of standard precast manhole rings. Three modular panels widths (A, B and C) enable a range of diameters to be accommodated up to a maximum internal precast ring diameter of 3.0m. The panels are joined together using a simple pin and wedge assembly system.

Road Plates

Road Plates

Road Plates are an effective solution for continued road use where trenches or excavations are not reinstated. With a strong focus on improving safety in the workplace, a new lifting system for handling standard and anti skid Road Plates is also available to provide a safer and quicker way to lift and relocate plates.Road Plates are available either in plain metal or with an anti-skid surface that incorporates resin-bonded bauxite chippings. They provide a quick solution where there is a need to maintain road use during peak times or between periods of work.

Trench Sheet Driving Plate

Trench Sheet Driving Plate

The Groundforce Trench Sheet Driving Plate is an alternative to using traditional piling caps when using the ‘dig and push’ method to install trench sheets. The Trench Sheet Driving Plate should always be used in conjunction with a Quick Release Shackle (QRS) to pitch the sheets.

Trench Struts

Trench Struts

Short, robust struts for small strutting application

Speed of Installation

Trench boxes offer a quick and easy installation process through either the 'pre dug' or 'dig and push' methods. They provide incremental adjustment with various strut types to accommodate different excavation dimensions. Compared to the traditional sheets and frames approach, trench boxes significantly reduce operation time, simplify the process, and lower the risk of a service strike.

Speed of Installation

Environmentally Friendly

Trench Boxes are simply lifted into an excavation in one lift with minimal backfill to the exterior panels. Using boxes eliminates all the equipment necessary for piling activity and this in turn translates into significant fuel savings and an instant win for the environment. On completion of groundworks, the box is simply lifted clear and disassembled.

Environmentally Friendly

Cost and Time Effective

The use of Trench Boxes, in contrast to sheets and frames, offers a cost and time advantage in construction projects. The benefits include a quicker and easier design process, fast installation and extraction, elimination of piling activity, and reduced use of equipment and fuel, resulting in overall time and cost reduction.

Cost and Time Effective

Contact Us

Looking for the right Trench Box solution?

With decades of industry expertise, Groundforce is the trusted partner for major contractors and infrastructure projects across the UK.

UK

t: 0800 000 345

e: info@vpgroundforce.com

FAQs

What are trench boxes?

A trench box is a structural system, usually made of steel or aluminium that is designed to hold back the earth within an excavation, creating a safe working space for personnel within. Unsupported ground can often seem stable in the short term, which can trick people into thinking that it's safe, but it's never safe to get into an unsupported excavation.


Do I need to use a Trench Box?

If you have to ask this question, the answer is probably yes. In almost all cases you will require a trench support system when digging excavations. There are very rare exceptions to this, but it requires that the excavation itself has been carefully designed. The important thing to be aware of is that no matter the depth of your excavation, it is always safest to use trench support systems.


What different Trench Boxes do you offer?

We offer a range of Trench Boxes including manhole braces, trench sheets and walers. We also offer products to accompany the structure itself, including ancillary products and safety solutions such as Edge Safe and Ladder Safe.


Which type of trench boxes are the best for my job?

Picking the right tool for the job is really important as there is no one solution to fit all projects. For example, a trench box gives a really quick and easy means of supporting an excavation, but there may be certain ground conditions that don’t allow you to use a trench box, meaning you will need a properly sheeted excavation. The best way to find out which type of trench support system you need is to get in touch with one of our sales representatives, fill out a design request form or let our complimentary design service, YourSolution answer that question for you.


How do I install a trench support system?

All of our equipment is supplied with installation guides which should be read in conjunction with your own site specific risk assessments.

Do I need a Temporary Works Design?

We recommend that a temporary works design is in place for every piece of temporary works equipment you install. You can request a temporary works design from Groundforce through our design request form.
